I built my first cedar planter box last spring, and honestly, it’s one of those projects that looks harder than it actually is. The whole thing comes down to picking the right wood, cutting some straight lines, and protecting everything from weather. Let me walk you through how I did it, step by step.
Start by getting rough-sawn cedar 2x4s—they’ll hold up way better than regular pine when they’re sitting outside getting rained on. You’ll also need a pocket-hole jig, a square, and a saw. The pocket-hole jig is really the only thing that makes a difference here because it hides your joints on the inside instead of leaving them visible on the outside.
Cut your four legs to 34.5 inches and your slats to 53 inches. Once everything’s cut, sand it smooth using progressively finer grits—I went from 80 to 120 to 150 grit. This part takes patience but it’s worth it because rough wood splinters like crazy, and nobody wants that on their hands.
The frame gets two coats of paint, while the slats need three coats of Spar Varnish. I know that sounds like a lot, but Spar Varnish is made to flex with the wood as it expands and contracts in the heat and cold. Regular varnish cracks and peels. The paint on the frame is mostly for looks.
Before you add soil, layer your interior with wire mesh on the bottom, then landscape fabric, then a plastic sheet. This setup keeps the wood from rotting while still letting water drain through the soil. Once that’s ready, fill it with soil and plant what you want.

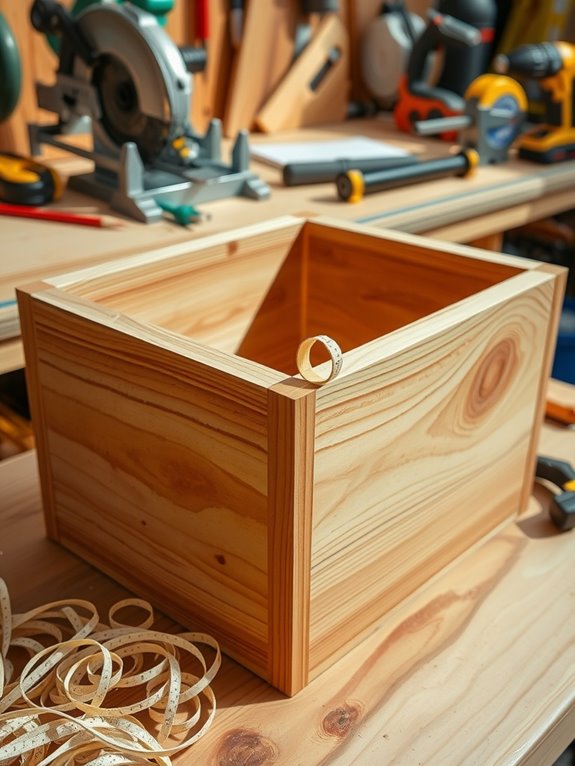

Select Cedar and Assemble Your Tool Kit
Select Cedar and Assemble Your Tool Kit
Before you start building, grab the right materials and tools. I’ve learned that having everything ready makes the actual construction way less stressful.
Cedar is your best option here. Rough-sawn cedar 2x4s give you solid rot and weather resistance, though pressure-treated lumber or Redwood work fine if you’re watching your budget. Both alternatives cost less and still hold up well outside.
Next, gather your essential tools. A pocket-hole jig like the Kreg Jig lets you hide fasteners inside joints so everything looks cleaner. You’ll also want a square tool—the kind that helps you check your angles and keep pieces aligned while you’re assembling. Skip this and you’ll end up with wobbly projects that frustrate you later.
For finishing, pick up sandpaper in two grits: 80–100 grit to start with rough surfaces, then 180 grit to smooth things out. If you’re working with really rough wood, a planer saves you hours of hand-sanding. These tools cost money upfront, but they genuinely make the whole build easier and look better when you’re done.
Cut Your Planter Box Frame Pieces to Size
Now that you’ve got your materials and tools ready, it’s time to start cutting. I’ll walk you through the frame pieces first, since they’re basically the skeleton of your whole planter box.
You’ll need four legs at 34.5 inches each and two top bars at 30 inches. These pieces create the basic structure everything else builds on. Then come the slats—eight long ones at 53 inches and eight short ones at 27 inches. When I built mine, I ripped the fence pickets down from 6 inches to 4.5 inches wide, which just looks cleaner and more balanced overall.
You’ll also need four bottom rails, each one measuring 1.5 by 1.5 by 27 inches. These sit underneath and hold up your bottom slats. Take your time getting these measurements right, because if everything lines up at this stage, assembly goes way smoother later on.

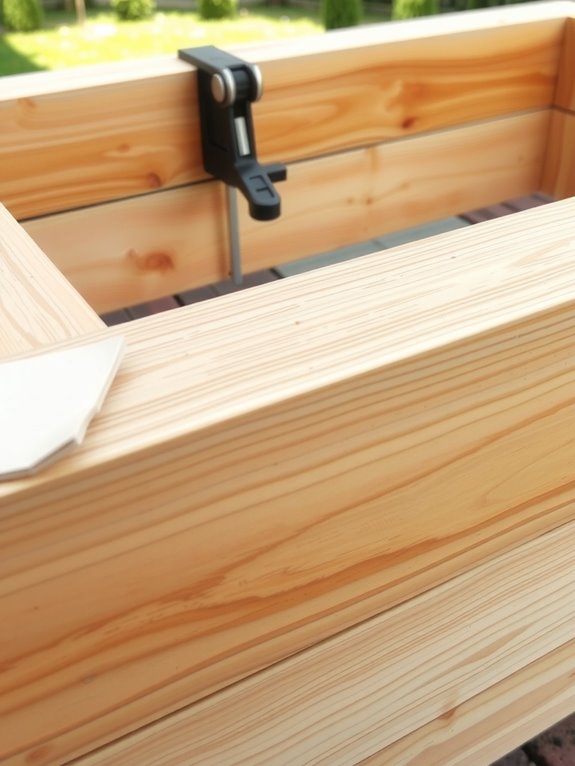

Cut and Sand Your Cedar Strips
I’m going to rip those 6-inch cedar pickets down to 4.5 inches wide so I’ve got consistent slats for my planter box. Cedar’s my go-to here because it naturally resists rot and actually looks better as it ages.
Let me start with the sanding. I’ll begin with 80–100 grit paper to knock down the rough spots, then work my way up to 180 grit to get everything smooth and splinter-free. If you’ve got a planer handy, it’ll speed things up quite a bit.
Once I’ve cut my pickets to length and measured everything carefully—keeping track of those 3-foot sections for the sides—I’ll add a quick 1/8 inch chamfer to the front edges. This just knocks down the sharpness and makes the whole thing look more polished. It’s a small detail that actually matters when you’re putting it all together.
Selecting The Right Cedar
Why Cedar Works for Outdoor Planters
I’ve built a lot of outdoor planters over the years, and cedar is my go-to wood because it naturally resists rot and moisture without needing constant upkeep. The wood repels decay on its own, which means your planter will last years outside without falling apart on you.
Picking Out Your Cedar
When I’m at the lumber yard, I grab rough-sawn 2x4s and spend time finding the straightest pieces I can find. Warped boards make assembly a real pain, so it’s worth taking a few extra minutes to inspect each one. For the slats, I pick up 3/4-inch cedar fence pickets—they’re cheap and the right thickness for what you need.
Why Straightness Matters
Straight boards just build easier. They fit together better, gaps are smaller, and you don’t waste time trying to force things into place. That’s the biggest reason I stick with cedar instead of pressure-treated lumber or other options.
Proper Sanding Techniques
Getting your cedar smooth is where the real craftsmanship happens, and honestly, this step makes more difference in the final result than people realize. I start by sanding all rough surfaces with 80–100 grit sandpaper to remove tool marks, then move up to 180 grit for that buttery-smooth finish. If you’ve got access to a planer, use it—it’ll give your cedar boards uniform thickness and a professional look right from the start.
For the slats cut from 3/4 inch cedar fence pickets, I sand everything to 180 grit, paying special attention to the edges so they’re comfortable to hold. A final 180 grit pass on both sides and ends of every component gets you there. Then I add a 1/8 inch chamfer to the front edges of the long slats, which reduces sharpness, improves visibility, and honestly, just feels nicer in your hands.
Measuring And Cutting Accurately
Measuring And Cutting Accurately
Getting your measurements right is where everything clicks into place—skip this step and you’ll be wrestling with pieces that just won’t fit together later. I’ve learned the hard way that measuring twice actually saves you time in the long run.
Here’s my process. Mark all eight long slats at 53 inches and the shorter ones at 27 inches with a carpenter’s pencil. Then cut your frame legs to exactly 34.5 inches and top bars to 30 inches using a miter saw. For the battens, measure them at 1.5 x 1.5 x 27 inches before you rip the cedar down from 6 inches to 4.5 inches wide.
I keep a speed square nearby for quick accuracy checks while I’m working. Taking five extra minutes to double-check these numbers now beats spending an hour later trying to force pieces together that don’t quite align. Your planter box will go together smoothly when every measurement is spot-on from the start.
Drill Hidden Attachment Holes
Now I’m setting up my pocket hole jig to drill those hidden attachment holes. This is the part that keeps the planter looking clean and professional from the front. I’ll position the jig so each hole lands about 1/2 inch from the inside edge of my cedar strips, which keeps all the fasteners completely out of sight. The pocket screws will hold everything together while the outside faces stay clean and flush, with no visible hardware to distract from the wood grain.
Pocket Hole Jig Setup
How do you keep fasteners completely out of sight while building a sturdy planter box. I’ve found that pocket holes are the way to go if you want that clean, professional look. They’re honestly my favorite woodworking technique now.
Here’s what I do:
Position your pocket hole jig about 1/2 inch from the edge on the inside faces of your legs and slats. This matters because it keeps everything hidden once you assemble the box.
Mark your drilling locations before you clamp the jig down. I learned this the hard way after wasting some nice wood on mistakes. Taking an extra minute to map things out saves a lot of frustration.
Use the correct drill bit** for your specific pocket hole system. Different brands have slightly different hole sizes**, so check your jig’s instructions.
I drill all sixteen slats with two pocket holes each before I start assembly. This lets me create solid joints while keeping all the hardware completely hidden from view. The jig does what it does best—it angles those holes perfectly every time, which is why I stopped trying to freehand them.
When I’m connecting top bars and rails in tight spaces, I grab my long screwdriver to reach those concealed screws. The angle of the pocket hole means you can access everything from the inside, so nobody sees a single fastener on the outside of your finished box.
Hidden Edge Placement Strategy
I’ve spent enough time building planter boxes to know that where you put those pocket holes really does matter for how finished your project looks. The trick is keeping your fasteners completely hidden so nobody can tell you didn’t buy it at a store.
Here’s what I do: I place each pocket hole about 1/2 inch in from the inner edge. That small distance keeps the holes invisible when you’re looking at the box from the front. You’re working with sixteen slats total, and I drill two holes per slat. That means every single joint gets solid reinforcement without any visible screws anywhere on the outside.
When you attach those four long slats to your legs first, this strategy pays off right away. The pocket jig handles the consistency for you—no guessing, no measuring twice. The result is a box with seamless lines that actually looks like someone knew what they were doing when they built it.
Paint Your Planter Box Frame and Finish the Slats
Your planter box is really taking shape now, and we’re finally at the part where it actually starts looking like something finished. This is where the paint and varnish come in, and honestly, this step is what keeps your whole project from falling apart after a few seasons of rain and sun.
Here’s my approach. I paint the cedar frame with two coats of exterior latex in dark gray or black, then add a third coat just on the end-grain areas since those drink up moisture like crazy. While that’s drying, I sand the slats progressively, starting at 80 grit, moving to 100 grit, and finishing with 180 grit for a smooth surface that accepts finish nicely.
Then comes the varnish. I apply three coats of Spar Varnish to the slats, waiting for each coat to dry completely before adding the next one. This is the part that actually protects the wood from weather damage. It takes patience, but the finish is what separates a planter that lasts five years from one that lasts fifteen.

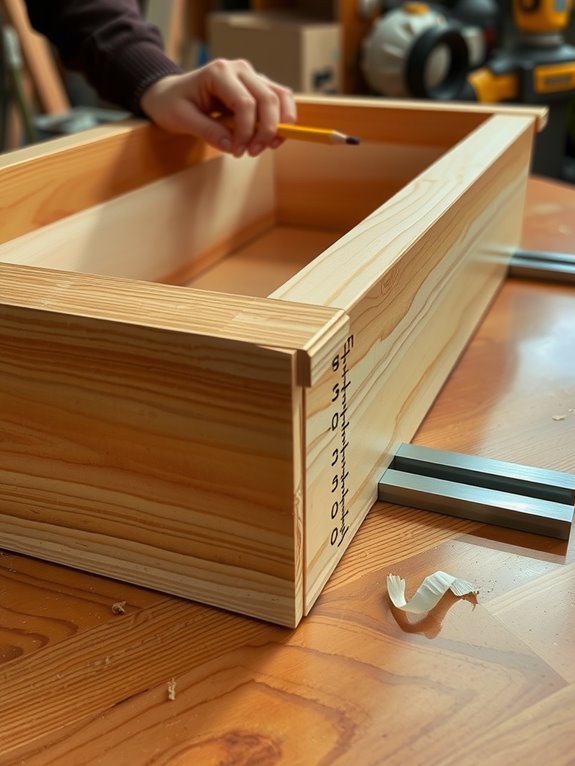

Assemble the Long Sides and Attach Slats
Once that varnish dries and your slats have a good protective coat, you’re ready to start putting the box together. I build this in sections instead of trying to assemble everything at once, which makes the whole thing feel less overwhelming.
I start by attaching four long cedar slats to two cedar legs using pocket holes. I drill these holes on the inside of the legs so you can’t see the fasteners from the front—it keeps things looking clean. The back edges of the slats line up flush with the legs, and this gives you that nice 3/4 inch reveal on the front side.
Before I lock anything in place, I grab my square tool and check that everything is actually square. A crooked frame will bother you every time you look at it, so this step matters. Once the long sides feel solid and square, I attach the two top bars to complete the frame and create that handle-like structure on top.

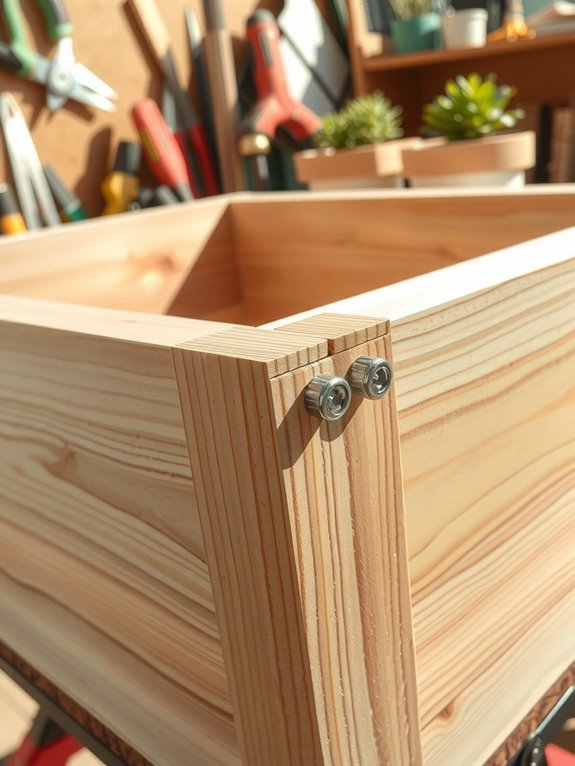

Square the Frame and Reinforce the Corners
How do you keep a wooden frame from twisting and warping over time. I’ve learned that reinforcement is absolutely necessary, and I want to walk you through exactly what I do.
Start by grabbing a square tool and checking every corner before you build anything else. You want those 90-degree angles locked in tight from the beginning. I position internal vertical strips about 8 inches down the legs for structural support, and then I add cross pieces using 2x4s to stop the frame from racking or bowing.
Here’s the detail that matters: I drill my pocket holes on the inside of the legs, roughly half an inch from the edge. This hides the fasteners while creating joints that actually stay put. The combination of internal bracing and proper pocket hole placement keeps a basic frame solid and square. Spending time on this part of the work saves you headaches later when everything stays perfectly aligned instead of shifting around.

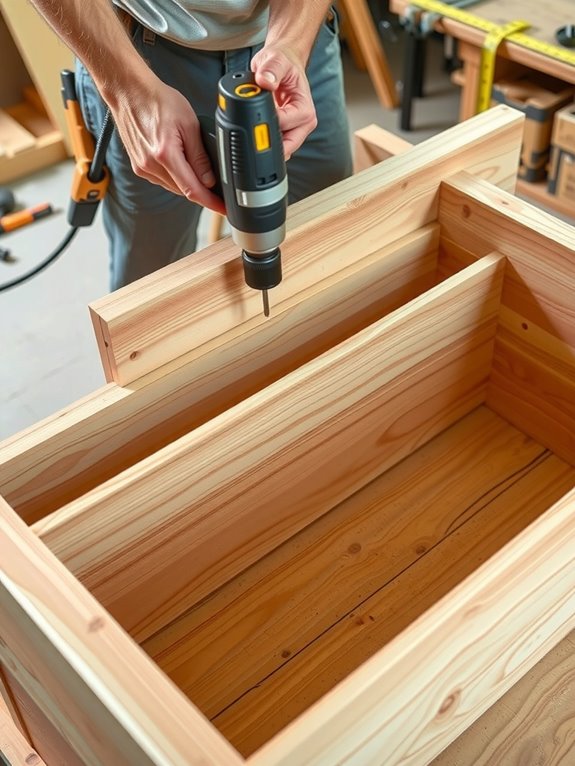

Install Bottom Rails at an Angle for Drainage
Why do so many homemade planters end up sitting in puddles of stagnant water. It’s because drainage gets overlooked, and I learned this the hard way before figuring out that angled bottom rails really do solve the problem.
I install four angled bottom rails, two per side, positioning them so water naturally flows toward the planter’s center. Each rail sits about an inch above the bottom, centered between the batten and side slats. I secure them with wood glue and five screws per rail, making sure they’re flush with the leg faces. Pre-drilling pocket holes keeps everything square and aligned.
Here’s what actually matters: I maintain roughly a quarter-inch gap between the bottom slats. This tiny space lets water escape and prevents soil from getting waterlogged. Your plants will thrive because they’re not sitting in wet soil anymore.

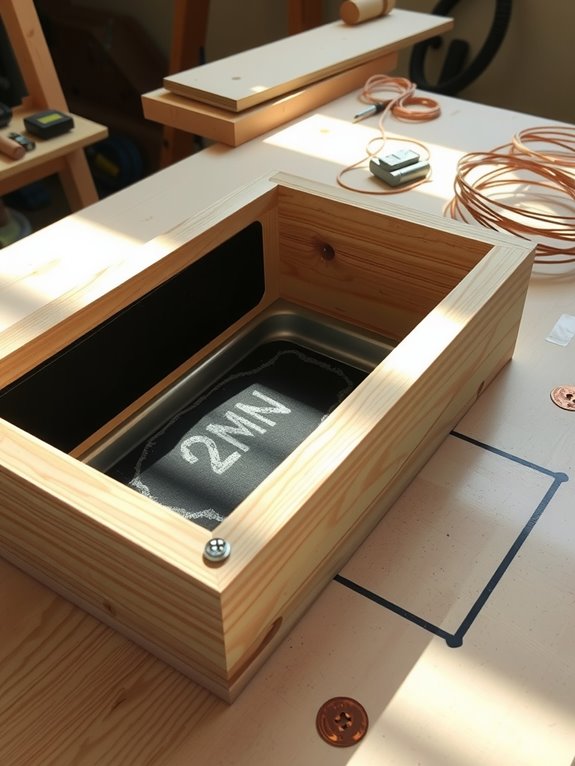

Line the Interior: Wire, Fabric, and Plastic
Line the Interior: Wire, Fabric, and Plastic
I line the inside of my boxes with three layers that work together to keep everything in place and draining right. Each layer does its own job, and together they protect the wood from rot and keep the soil exactly where it belongs.
Start with chicken wire on the bottom. It creates strength and spreads the weight of wet soil evenly across your box so nothing sags or splits. Cut it to fit your interior dimensions, then staple it down at the bottom edges only—this keeps the front looking clean.
Next comes landscape fabric laid right over that wire. It holds the dirt inside while letting water drain through naturally. This stuff stops soil from washing out while rain soaks down to where you need it.
The final layer is black plastic sheeting, cut to your interior measurements. Staple this around the bottom edges just like the other layers. It seals out moisture that would otherwise creep into the wood and cause rot over time. Punch a few drainage holes—I make three or four holes about the size of a dime in the center bottom—so water doesn’t pool up and sit there.
The plastic extends partway up the sides, creating a barrier against dust and dampness seeping in from below. This layering system keeps your planter working well for years without the wood breaking down from constant moisture exposure.

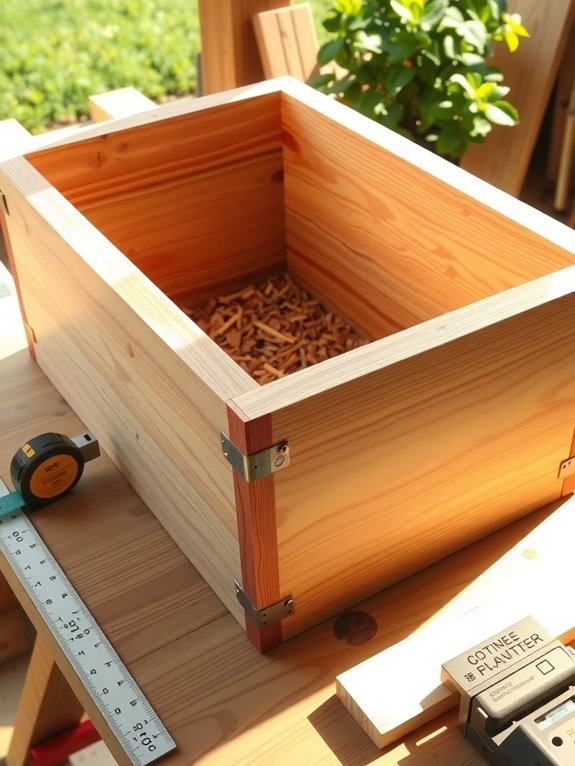

Fill Your Planter Box and Begin Planting
Once your layers are all in place, it’s time to fill that box with soil and get growing. I’ve found that using a quality soil mix loaded with organic matter like peat moss, vermiculite, and straw really does make a difference in how my plants do. These amendments improve both fertility and structure, giving roots what they need to flourish.
Fill your wood planter box gradually, settling the soil as you go. This prevents settling later and ensures even support for your plants. I water gently while filling to help everything compress naturally.
Once you’ve reached the right level, you’re ready to plant. Space your seedlings or seeds according to their needs, then water thoroughly. Your planter box is now a growing space—one you’ve built yourself.
